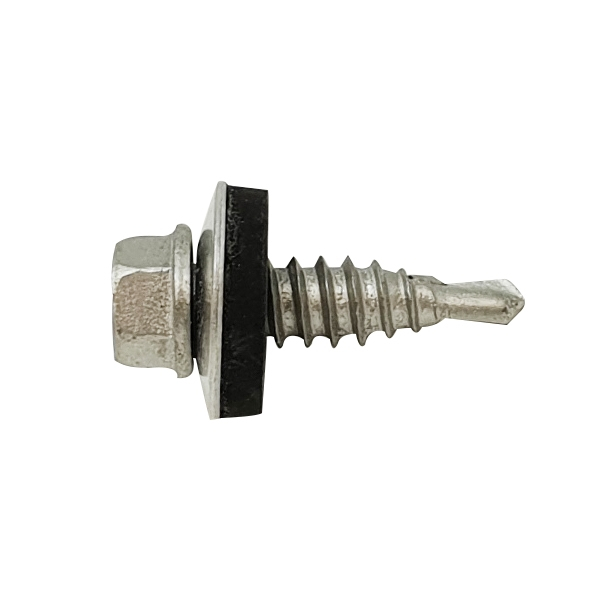

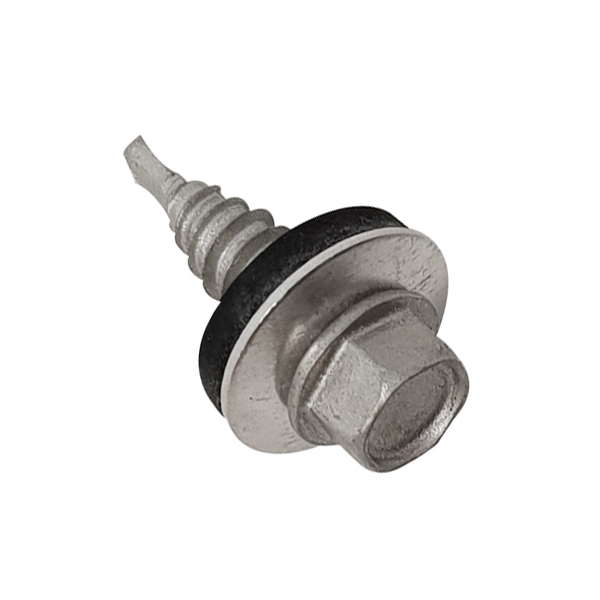

• TechFast Sheet to Sheet.
• Used for joining metal roofing sheet panels together.
• Self-Drilling in Roofing Sheet Steel up to 2.5mm.

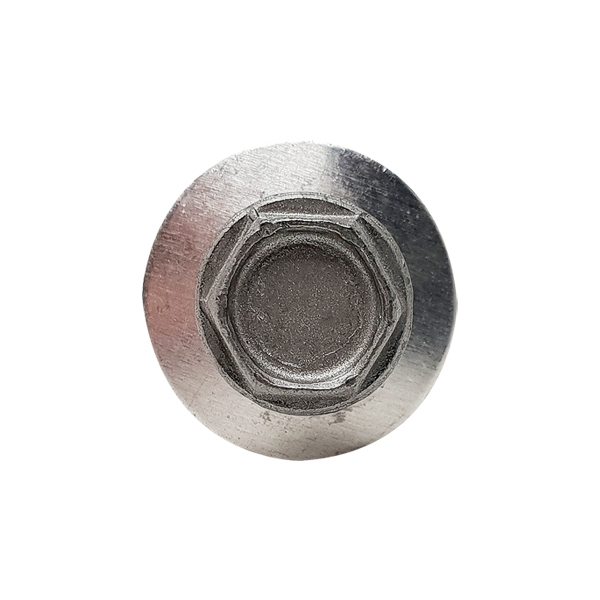

• 8mm Hex Head.

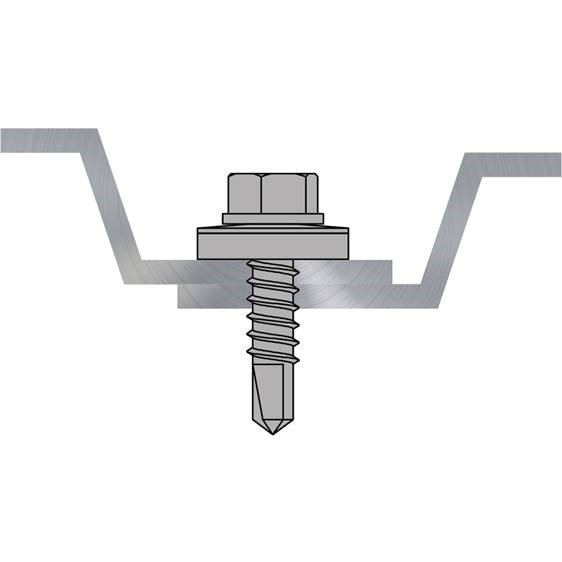

• Smaller No. 1 drill tip can drill through two sheets then engage the threads to clamp the sheets together under the head.
• Fire and corrosion resistant, protected by Elementech corrosion resistant coating, salt spray tested to 1000 hours.
• Complies with EU Safety, Health and Environmental requirements.
| Size | 6.3 x 22mm |
|---|---|
| Finish | Elementech |
| Pack Depth (mm) | 135 |
| Pack Height (mm) | 60 |
| Pack Width (mm) | 90 |
| Pack Paper/Card Weight (gm) | 49 |
| Pack Plastic Weight (gm) | 0 |
| Metric Size | 6.3 x 22mm |
| Outer Depth (mm) | 300 |
| Outer Height (mm) | 140 |
| Outer Width (mm) | 195 |
| Diameter | 6.3mm |
| Drill Point | 1 |
| Clamping Thickness | 11mm |
| Brand | TechFast |

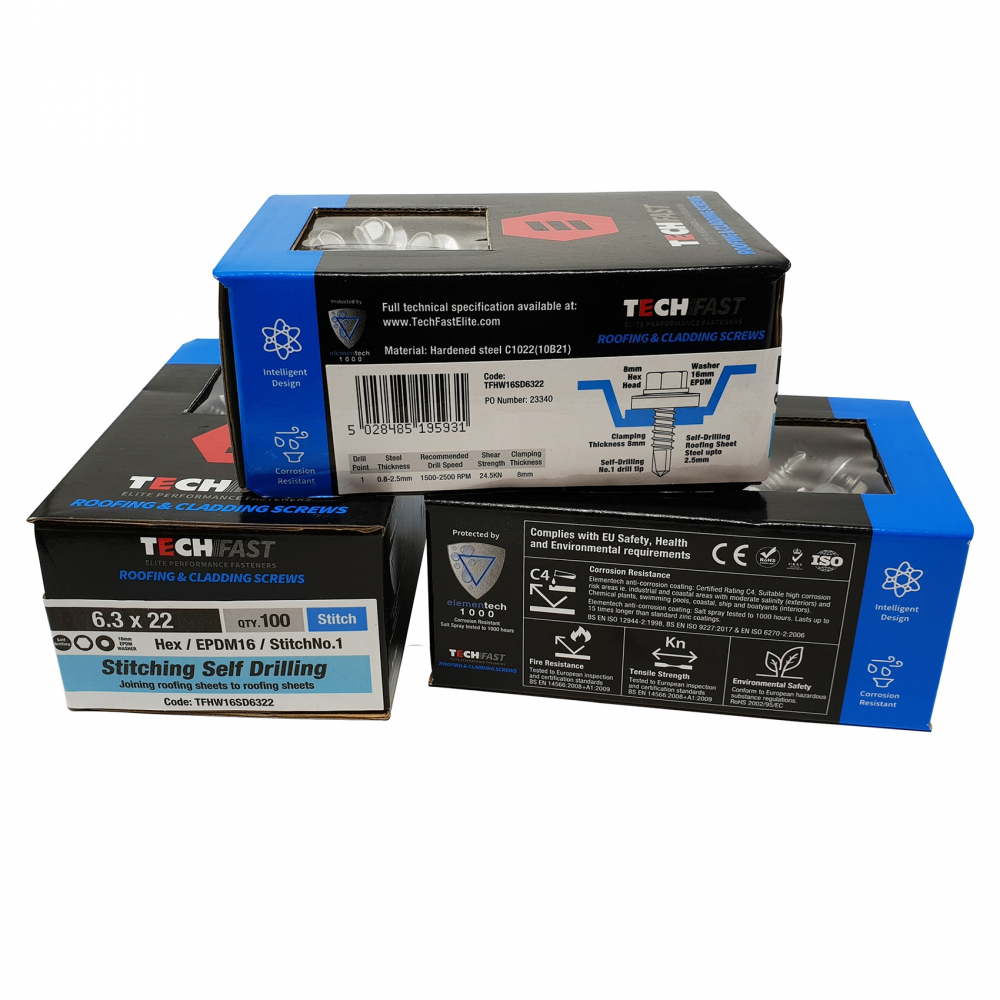

| Pack Type | Box |
| Length | 22mm |
| Barcode | 5028485195931 |
| Pack Qty | 100 |
| Head Type | Hex |
| Washer Size | 16mm |
