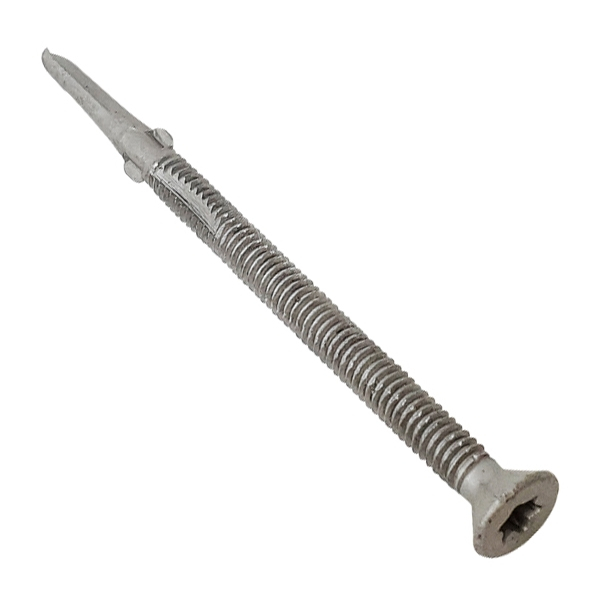

• TechFast Timber to Steel.
• Used for joining Timber to steel frame buildings.
• No.5 drill tip for self-drilling heavy gauge steel up to 12.5mm.
• Screw fitted with breakaway wings that create a clearance hole to protect thread from engaging timber when drilling through.
• Breakaway wings will ream a hole then break-off when they contact the metal surface to be drilled. Thread will then engage with metal.
• Torx compatible insert for a higher transmission of power.
• Improved countersinking from recessed ribs.
• Fire and corrosion resistant, protected by Elementech corrosion resistant coating, salt spray tested to 1000 hours.
• Complies with EU Safety, Health and Environmental requirements.
| Size | 5.5 x 40mm |
|---|---|
| Finish | Elementech |
| Pack Depth (mm) | 135 |
| Pack Height (mm) | 60 |
| Pack Width (mm) | 90 |
| Pack Paper/Card Weight (gm) | 49 |
| Pack Plastic Weight (gm) | 0 |
| Metric Size | 5.5 x 40mm |
| Outer Depth (mm) | 300 |
| Outer Height (mm) | 140 |
| Outer Width (mm) | 195 |
| Diameter | 5.5mm |
| Drill Point | 5 |
| Clamping Thickness | 11mm |
| Brand | TechFast |
| Pack Type | Box |
| Length | 40mm |
| Barcode | 5028485194637 |
| Pack Qty | 100 |
| Drive Type | Torx TX |
| Head Type | Countersunk |
| Steel Section | Heavy Duty |
There are no downloads for this product.
