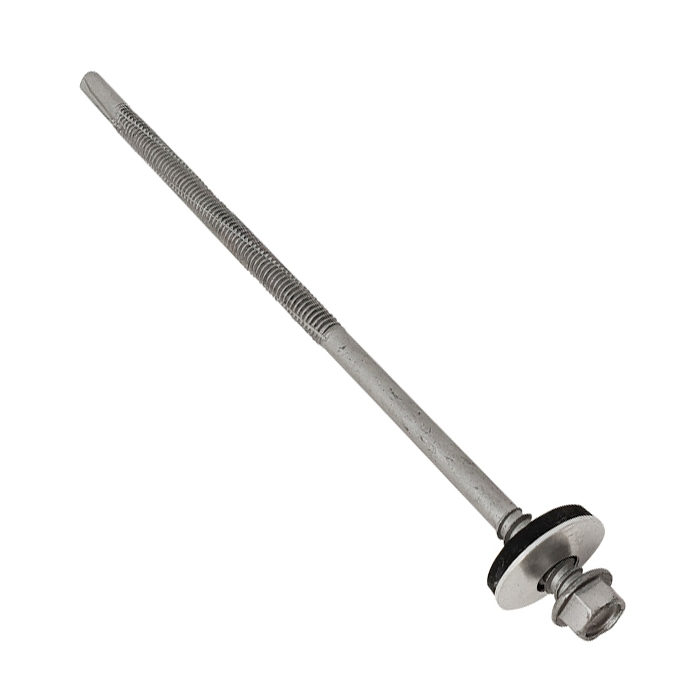

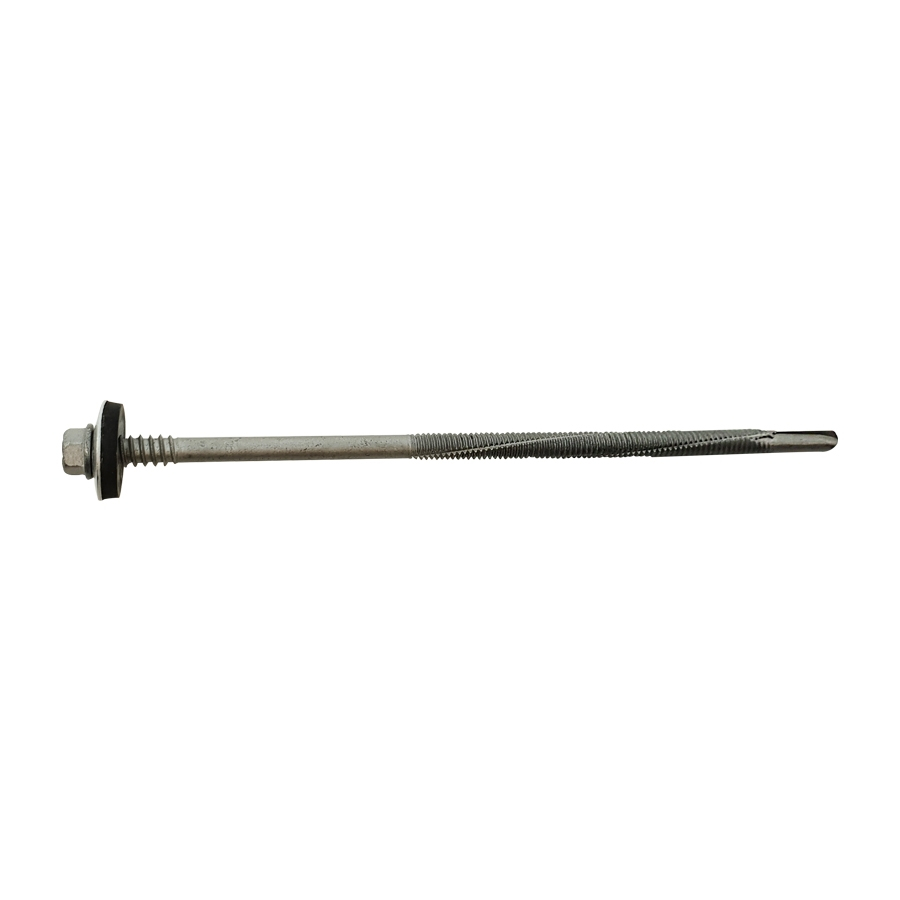

• TechFast Composite Panels to Steel.

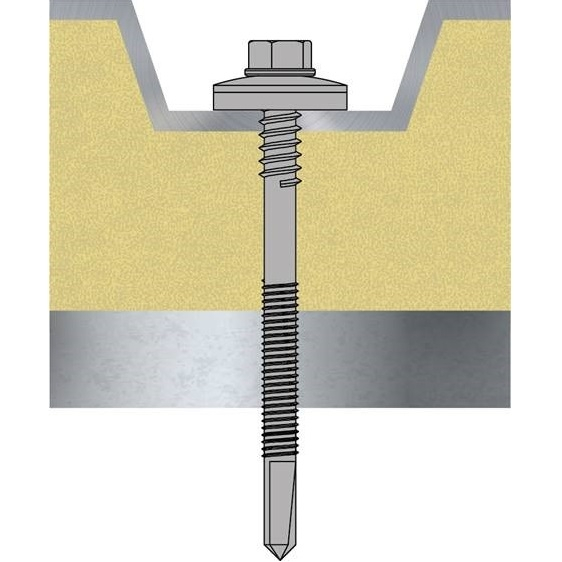

• Used for joining composite panels to steel frame buildings.
• Specially designed compression control thread to prevent damage and denting of panels.

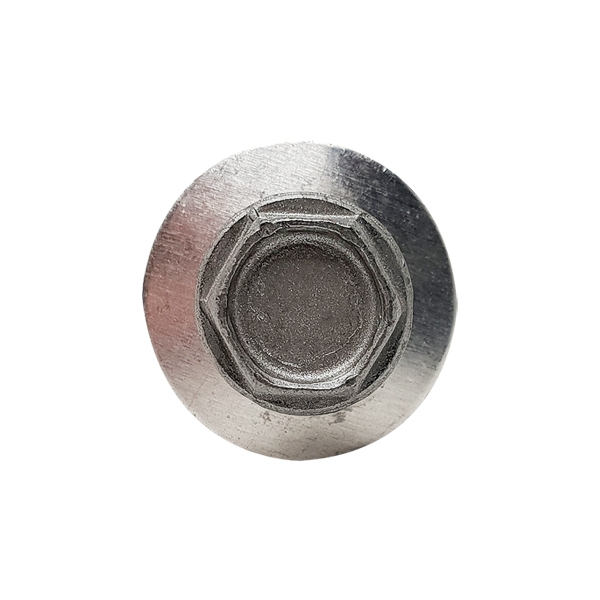

• 8mm Hex Head.
• No.5 drill tip for self-drilling in heavy gauge steel up to 12.5mm.
• Complete with 19mm EPDM rubber washer.
• Fire and corrosion resistant, protected by Elementech corrosion resistant coating, salt spray tested to 1000 hours.
• Complies with EU Safety, Health and Environmental requirements.
| Size | 5.5 x 75mm |
|---|---|
| Finish | Elementech |
| Pack Depth (mm) | 182 |
| Pack Height (mm) | 90 |
| Pack Width (mm) | 92 |
| Pack Paper/Card Weight (gm) | 79 |
| Pack Plastic Weight (gm) | 0 |
| Metric Size | 5.5 x 75mm |
| Max Steel Thickness | 3.5 - 12.5mm |
| Outer Depth (mm) | 300 |
| Outer Height (mm) | 140 |
| Outer Width (mm) | 195 |
| Diameter | 5.5mm |
| Drill Point | 5 |
| Brand | TechFast |
| Pack Type | Box |
| Length | 75mm |
| Barcode | 5028485196211 |
| Pack Qty | 100 |
| Head Type | Hex |
| Washer Size | 19mm |
| Steel Section | Heavy Duty |
