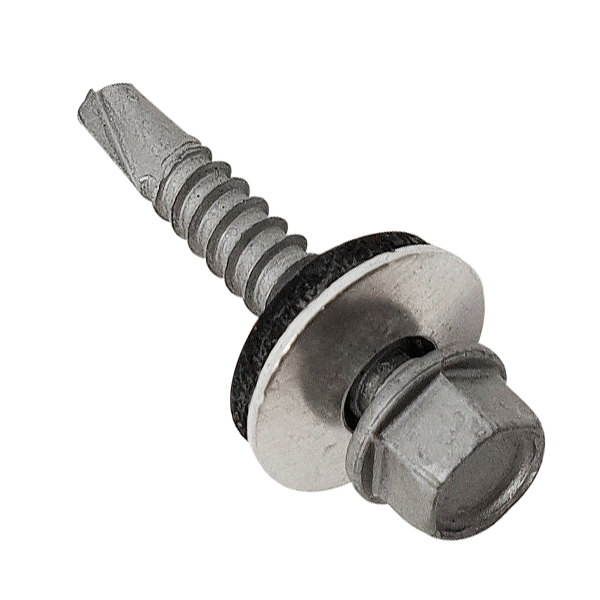

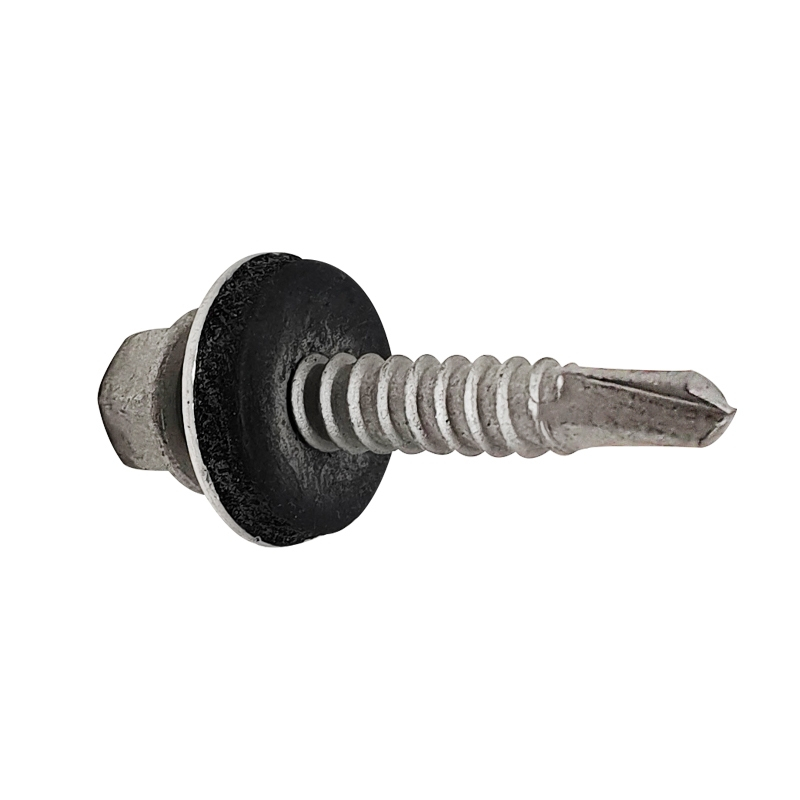

• TechFast Roofing Sheets to Steel.

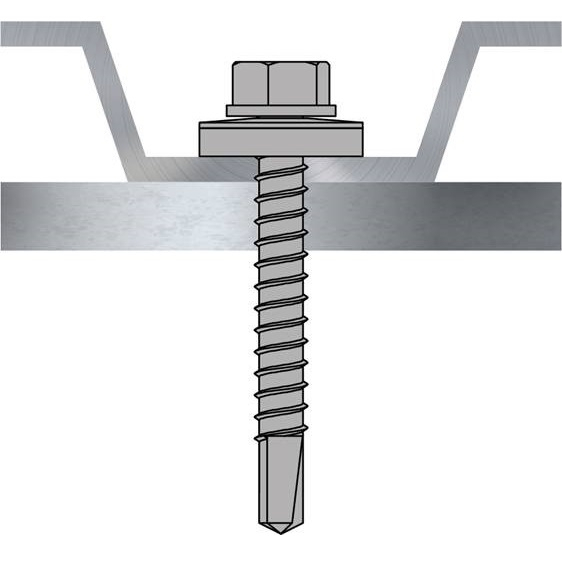

• Used for joining metal roofing panels to steel frame buildings.

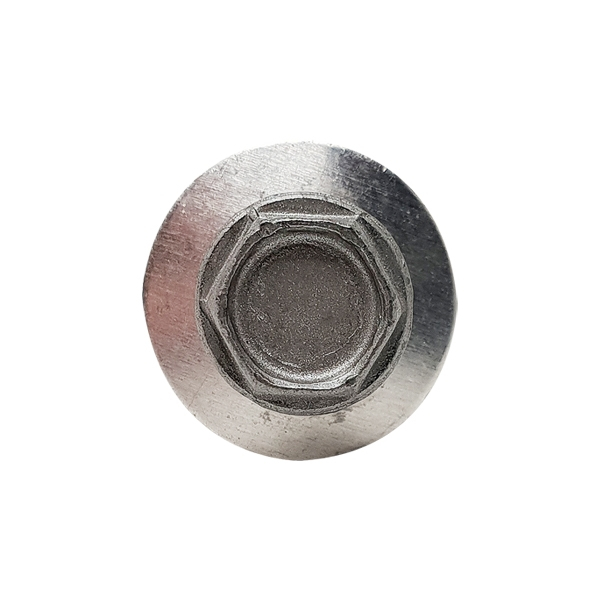

• 8mm Hex Head.
• No.3 drill tip for self-drilling in light gauge steel up to 5mm.
• Complete with 16mm EPDM rubber washer.
• Fire and corrosion resistant, protected by Elementech corrosion resistant coating, salt spray tested to 1000 hours.
• Complies with EU Safety, Health and Environmental requirements.
| Size | 5.5 x 25mm |
|---|---|
| Finish | Elementech |
| Pack Depth (mm) | 135 |
| Pack Height (mm) | 60 |
| Pack Width (mm) | 90 |
| Pack Paper/Card Weight (gm) | 49 |
| Pack Plastic Weight (gm) | 0 |
| Metric Size | 5.5 x 25mm |
| Outer Depth (mm) | 300 |
| Outer Height (mm) | 140 |
| Outer Width (mm) | 195 |
| Diameter | 5.5mm |
| Drill Point | 3 |
| Clamping Thickness | 8mm |
| Brand | TechFast |
| Pack Type | Box |
| Length | 25mm |
| Barcode | 5028485195634 |
| Pack Qty | 100 |
| Head Type | Hex |
| Washer Size | 16mm |
| Steel Section | Light Duty |
