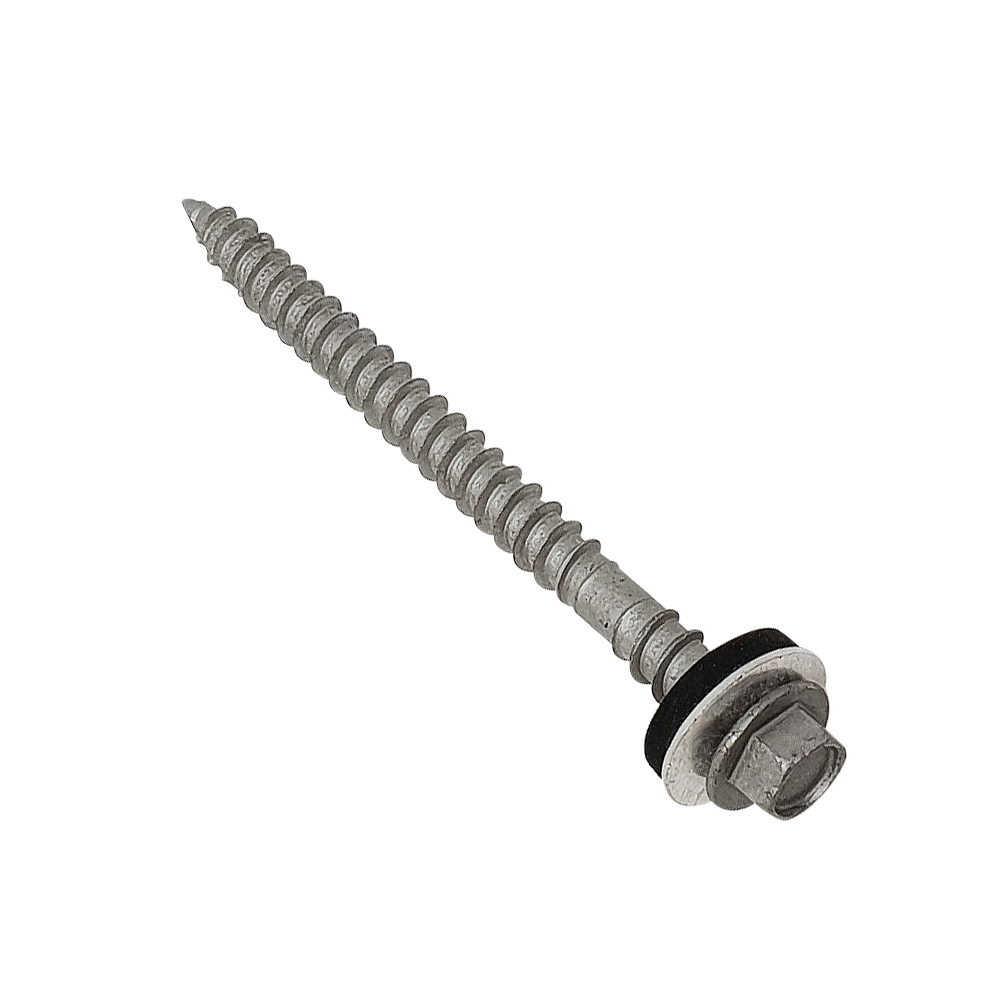

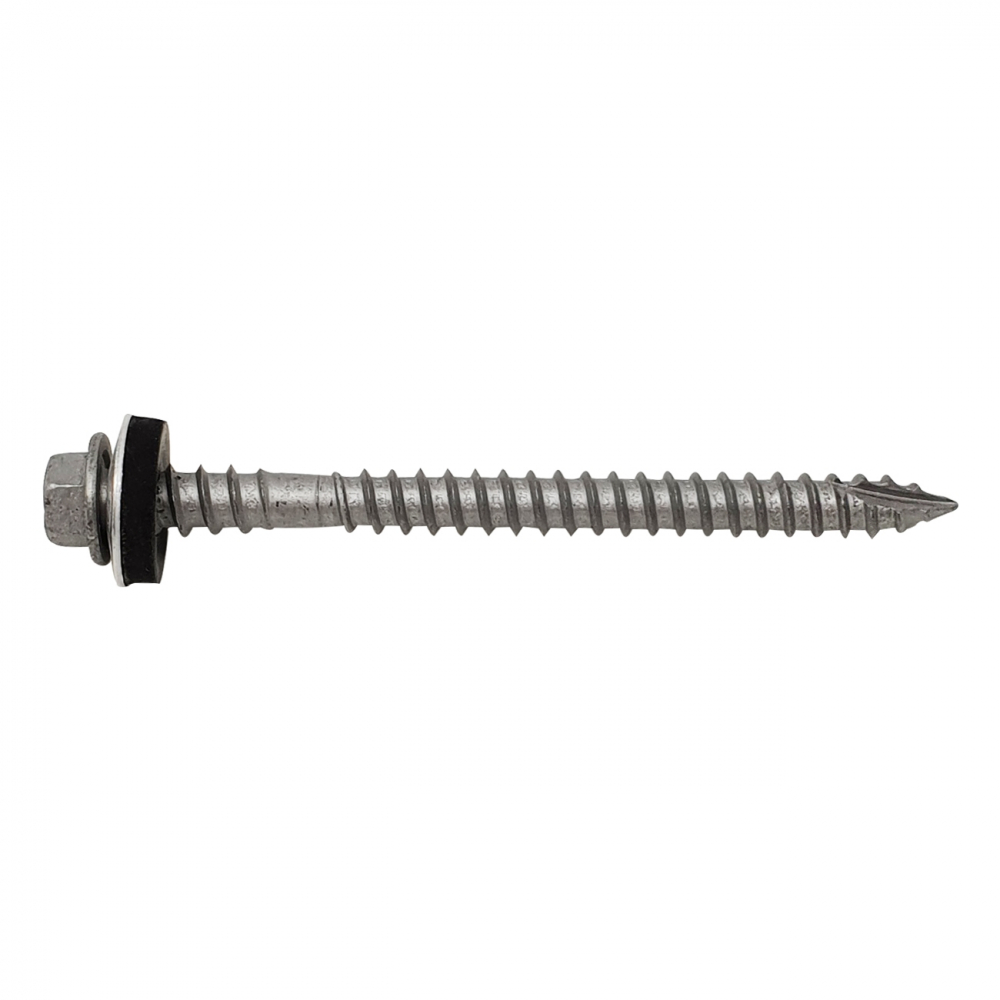

• TechFast Composite Roofing Panels to Timber.

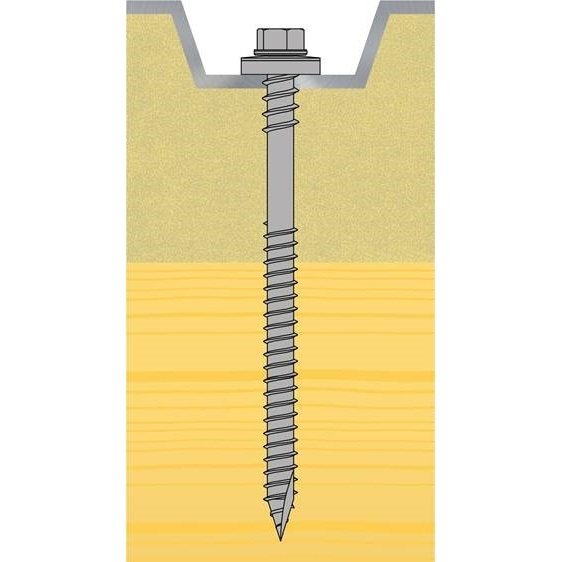

• Used for joining composite roofing panels to timber frame buildings.
• Specially designed compression control thread to prevent damage and denting of panels.

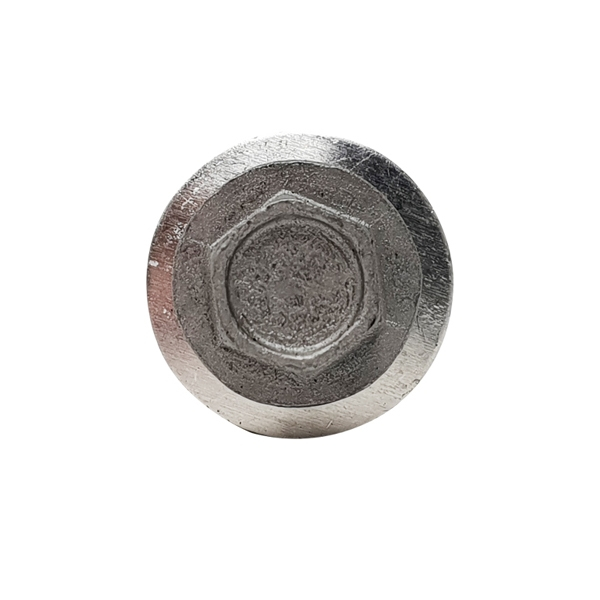

• 8mm Hex Head.
• No pre-drilling is required and the self-drilling T17 Gash Point on screws makes for a rapid installation.
• Complete with 16mm EPDM rubber washer.
• Suitable for a steel thickness of 0.5-1.2mm.
• Fire and corrosion resistant, protected by Elementech corrosion resistant coating, salt spray tested to 1000 hours.
• Complies with EU Safety, Health and Environmental requirements.
| Size | 6.3 x 80mm |
|---|---|
| Finish | Elementech |
| Pack Depth (mm) | 275 |
| Pack Height (mm) | 80 |
| Pack Width (mm) | 80 |
| Pack Paper/Card Weight (gm) | 119 |
| Pack Plastic Weight (gm) | 0 |
| Metric Size | 6.3 x 80mm |
| Outer Depth (mm) | 170 |
| Outer Height (mm) | 190 |
| Outer Width (mm) | 570 |
| Diameter | 6.3mm |
| Brand | TechFast |

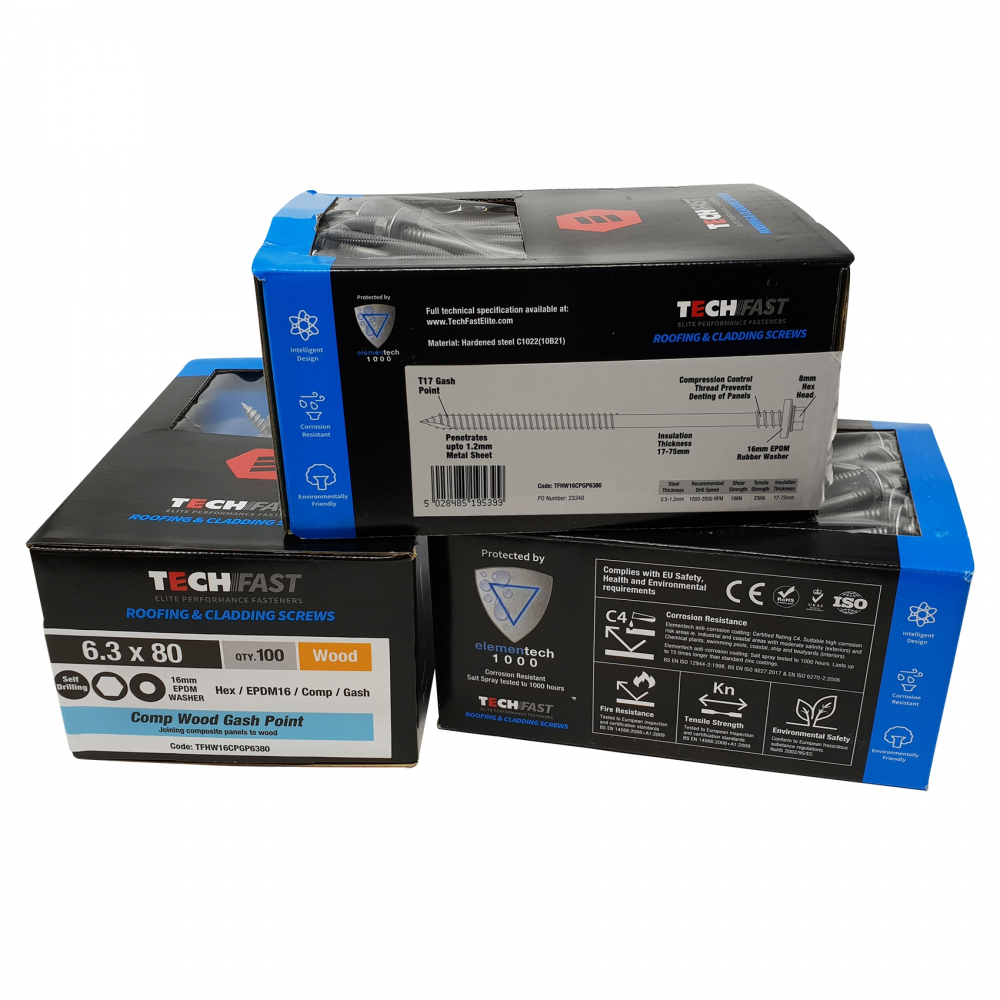

| Pack Type | Box |
| Length | 80mm |
| Barcode | 5028485195399 |
| Pack Qty | 100 |
| Head Type | Hex |
| Washer Size | 16mm |
