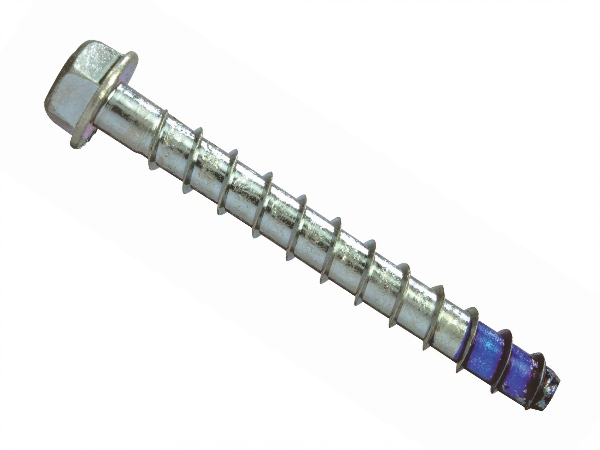

• Blue-Tip 2 Screw-Bolts - High Performance, One-piece Design Concrete Screws.
• Blue-Tip 2 Screw-Bolts are the only bolts with ETA/Fire approval across the full range.
• ETA Option 1 approved for cracked and uncracked concrete.
• ETA Part 6 approved on 6mm diameters (excluding M6x30mm).
• Fire rated to F120.
• Re-designed to ensure a simple installation with greatly improved loading capacities every time.
• Features a patented thread, designed for use with standard metric drill bits; reduces installation torque and increases productivity.
• Patented thread taps into the hole during installation to provide keyed engagement. Allows for reduced edge and spacing distances.
• Range includes lengths from 30 to 200mm and diameters from 6 to 16mm, ensuring a Blue-Tip 2 Screw-Bolt for all applications.
• Head: Hex/Flange.
• Finish: Zinc Plated.
Applications:
• Racking and shelving; Temporary supports; Fencing; Railings and handrails; Stadium seating; Fastening steel and metal base plates to concrete.
| Size | M12 x 75mm |
|---|---|
| Finish | Zinc Plated |
| Pack Depth (mm) | 160 |
| Pack Height (mm) | 120 |
| Pack Width (mm) | 126 |
| Drill Size | 12.0mm |
| Max Fixing | 5mm |
| Socket Size | 19mm |
| Metric Size | M12 x 75mm |
| Diameter | M12 |
| Brand | DeWALT |
| Pack Type | Box |
| Length | 75mm |
| Barcode | 5054905246556 |
| Pack Qty | 25 |
| Head Type | Hex/Flange |
