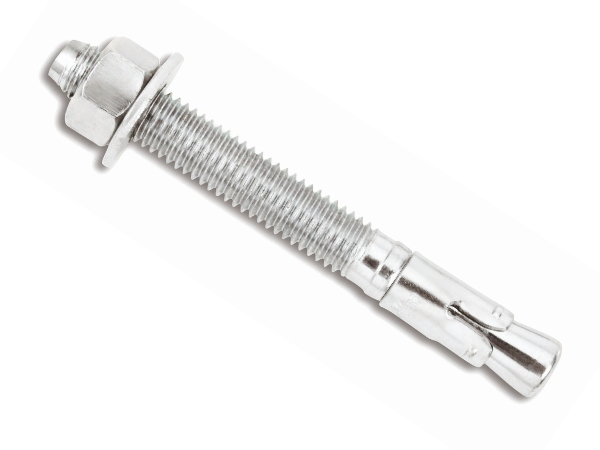

• PTB-PRO is afully threaded, torque controlled, wedge expansion anchor.
• Designed for consistent performance in cracked and uncracked concrete.
• Easy to install and suitable for a variety of base materials.
• Nomimal drill bit size is the same as the anchor diameter.
• Wide range of PTB-PRO anchor sizes covers all common capacity demands.
• Superior load-displacement response qualifies the PTB-PRO for both standard and adverse conditions.
• ETA Option 1 approval (CE approved) for cracked and uncracked concrete*
• Long thread for flexibility in fixture thicknesses.
• Special cone angle for quick installation.
• F120 fire resistance.
Applications:
• Piping and heating supports; Heating pumps; Ventilation systems and air conditioning; Safety barriers; Fire escapes.
Approved for seismic load applications.
| Size | M12 x 105mm |
|---|---|
| Finish | Zinc Plated |
| Pack Depth (mm) | 245 |
| Pack Height (mm) | 80 |
| Pack Width (mm) | 120 |
| Max Fixing | 20mm |
| Socket Size | 19mm |
| Metric Size | M12 x 105mm |
| Diameter | M12 |
| Brand | DeWALT |
| Pack Type | Box |
| Length | 105mm |
| Barcode | 075352962207 |
| Pack Qty | 25 |
There are no downloads for this product.
