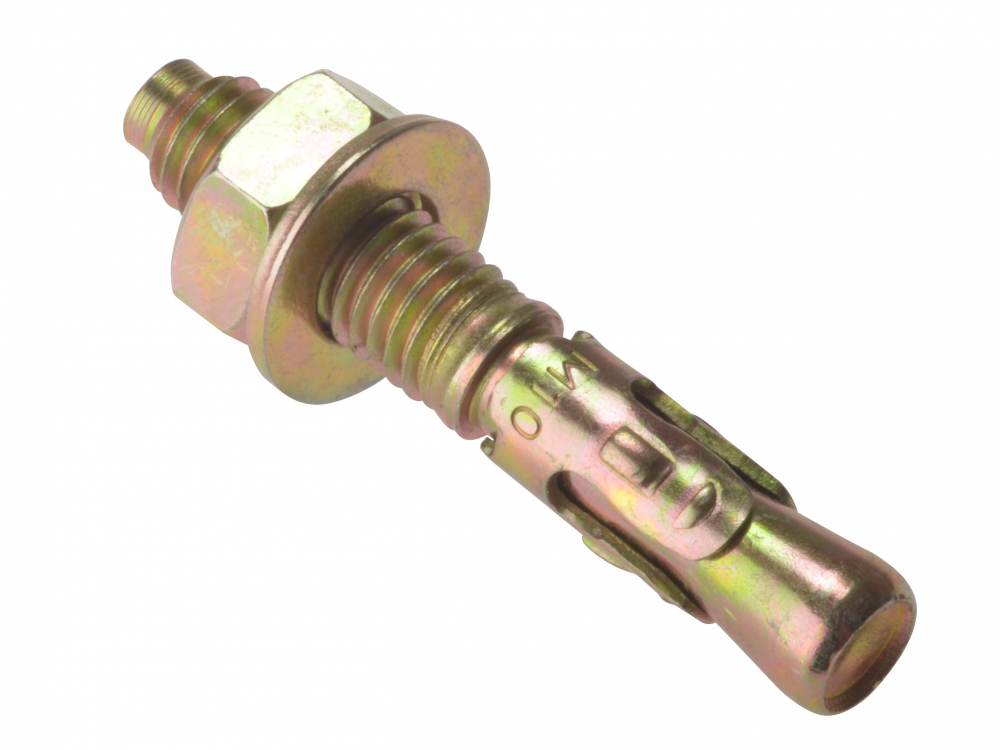

• Percussion expansion anchor masonry fixing.
• Finish: Zinc Yellow Passivated.
• Bolt projection holding down fixing.
• The perfect choice for permanent installations due to through fixing.
• Extremely economical and quick to install.
• Ideal for holding down machinery.
• Suitable for fixing brackets, cladding, restraints, racking, fabricated stairwells and reinforced doors.
| Size | M10 x 100mm |
|---|---|
| Finish | Zinc Yellow Passivated |
| Pack Depth (mm) | 180 |
| Pack Height (mm) | 20 |
| Pack Width (mm) | 125 |
| Pack Paper/Card Weight (gm) | 0.5 |
| Pack Plastic Weight (gm) | 8 |
| Pack Code | BAGFFD27 |
| Drill Size | 10mm |
| Min Hole Depth | 50mm |
| Max Fixing | 35mm |
| Socket Size | 17mm |
| Metric Size | M10 x 100mm |
| Outer Depth (mm) | 250 |
| Outer Height (mm) | 50 |
| Outer Width (mm) | 250 |
| Diameter | M10 |
| Brand | FandF |
| Pack Type | Bag |
| Length | 100mm |
| Barcode | 5028485727095 |
| Pack Qty | 10 |
There are no downloads for this product.
