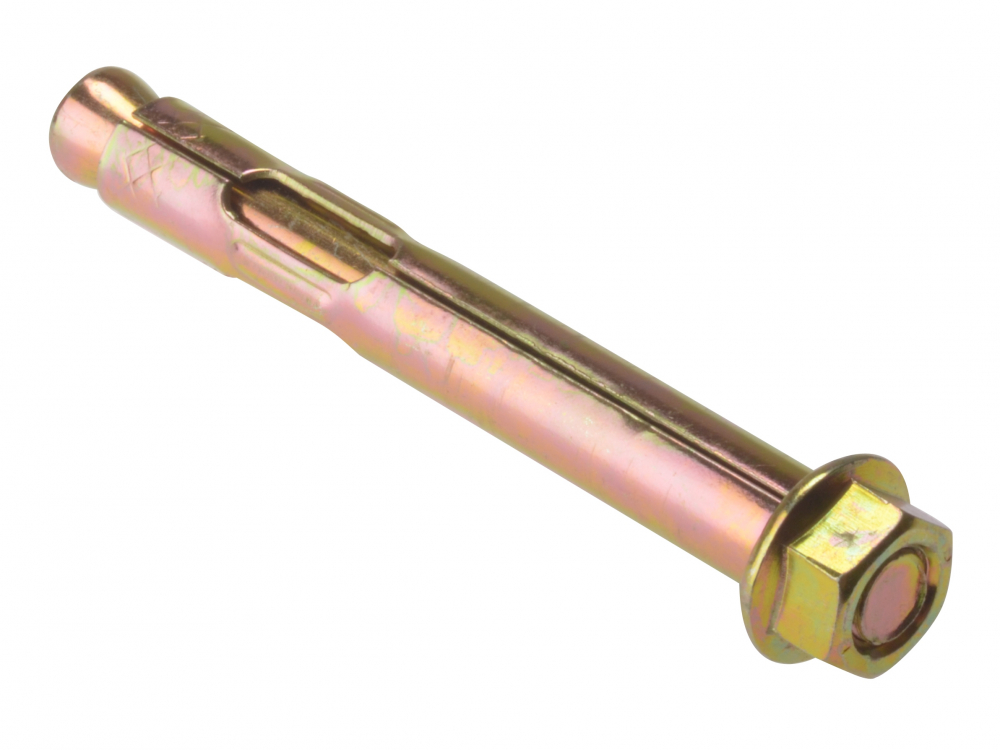

• Expansion anchor masonry fixing.
• Finish: Zinc Yellow Passivated.
• Also known as 'projection bolt' sleeve anchor.
• Through fixing for ease and speed of installation.
• Sleeve wedge cones designed to give maximum expansion.
• Reduced outside sleeve diameter compared to thread size offersreduced stress in base materials.
• Offers easier fixture removal or re-positioning due to bolt part remaining in the shield.
• Widely used for fixing balustrades, handrails, racking, roller shutters, window grills and much more.
• Suitable for most masonry substrates including concrete and brickwork.
Socket size guide:
• M6: 10mm, M8: 15mm, M10: 17mm, M12: 19mm, M16: 24mm.
| Size | M8 x 65mm |
|---|---|
| Finish | Zinc Yellow Passivated |
| Pack Depth (mm) | 130 |
| Pack Height (mm) | 20 |
| Pack Width (mm) | 125 |
| Pack Paper/Card Weight (gm) | 0.5 |
| Pack Plastic Weight (gm) | 6 |
| Pack Code | BAGFFD26 |
| Drill Size | 8mm |
| Min Hole Depth | 40mm |
| Max Fixing | 37mm |
| Socket Size | 15mm |
| Metric Size | M8 x 65mm |
| Outer Depth (mm) | 250 |
| Outer Height (mm) | 50 |
| Outer Width (mm) | 250 |
| Diameter | M8 |
| Brand | FandF |
| Pack Type | Bag |
| Length | 65mm |
| Barcode | 5028485446354 |
| Pack Qty | 10 |
| Head Type | Hex |
