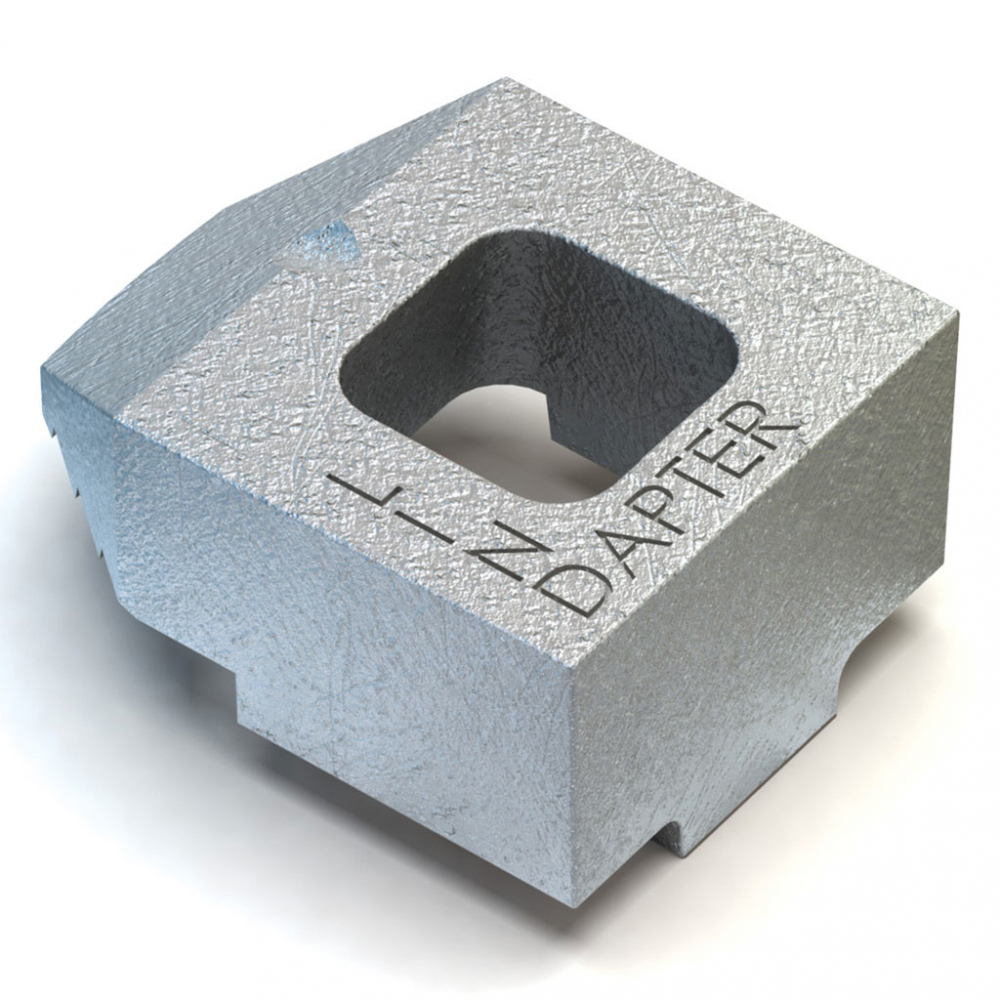

Lindapter B Long Tail ZP M12 B12LW Per 1
Lindapter

Lindapter B Long Tail ZP M12 B12LW Per 1

Stock Code: LM12BL

Login...

Descriptions

The flat-top version of Lindapter's standard clamp, for moderate tensile loading. Can also be used with Type A in a Girder Clamp configuration.

• Flat top allows the bolt head or nut to rotate on a hardened washer.
• Suitable for use with bolts, studs, tie rods, J-bolts.
• Supports up to 78.8kN in a tensile four-bolt configuration.
• For higher loads the Type AF should be used.

SizeM12
FinishBright Zinc Plated
Pack Depth (mm)252
Pack Height (mm)156
Pack Width (mm)116
BrandLindapter
Pack TypeBox
Pack Qty1
DiameterM12
