Lindapter A Medium Tail M16 A16MW Per 1
Lindapter

Lindapter A Medium Tail M16 A16MW Per 1

Stock Code: LM16AM

Login...

Descriptions

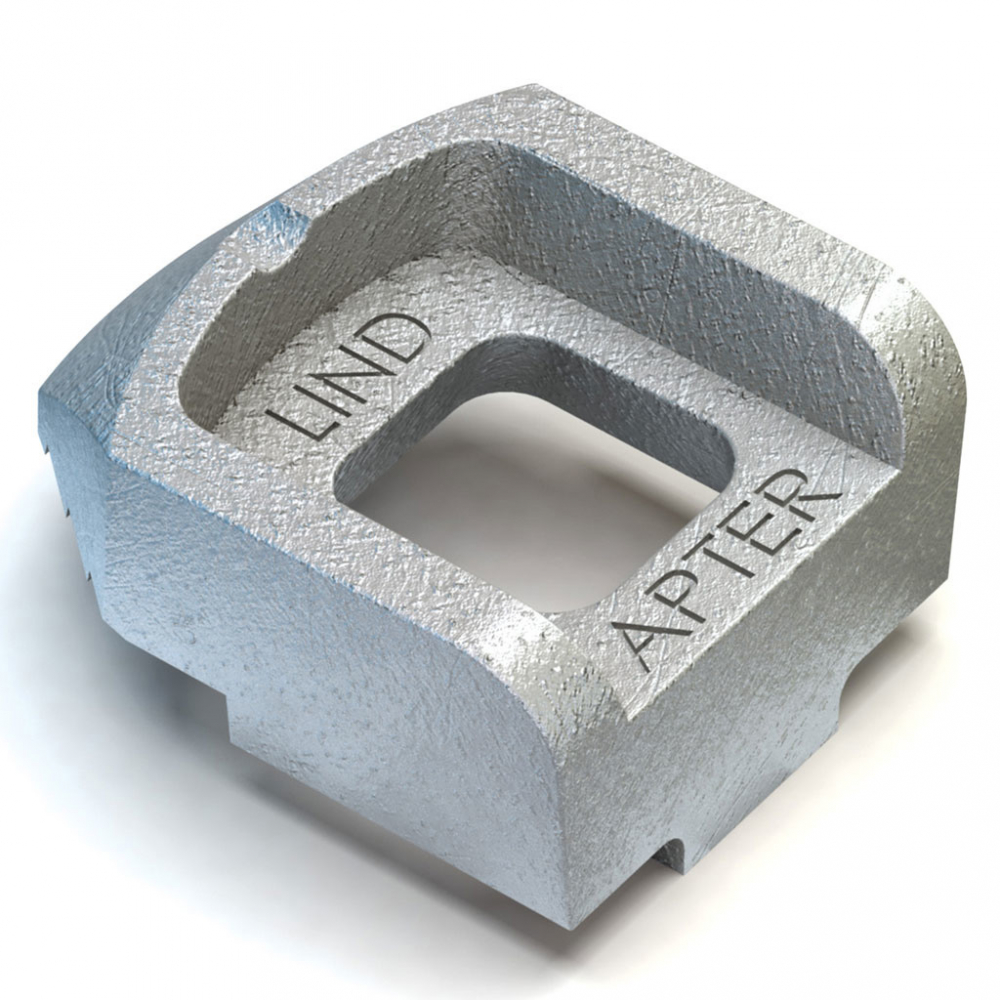

Lindapter's standard clamp is used to resist moderate tensile loading. Can also be used with Type B in a Girder Clamp configuration.

• Recessed top holds the bolt captive while the nut is tightened.
• Ideal for parallel flanges.
• Supports up to 78.8kN tensile in a four-bolt configuration.
• For higher loads the Type AF should be used.

SizeM16
FinishBright Zinc Plated
Pack Depth (mm)202
Pack Height (mm)154
Pack Width (mm)114
BrandLindapter
Pack TypeBox
Pack Qty1
DiameterM16

There are no downloads for this product.
