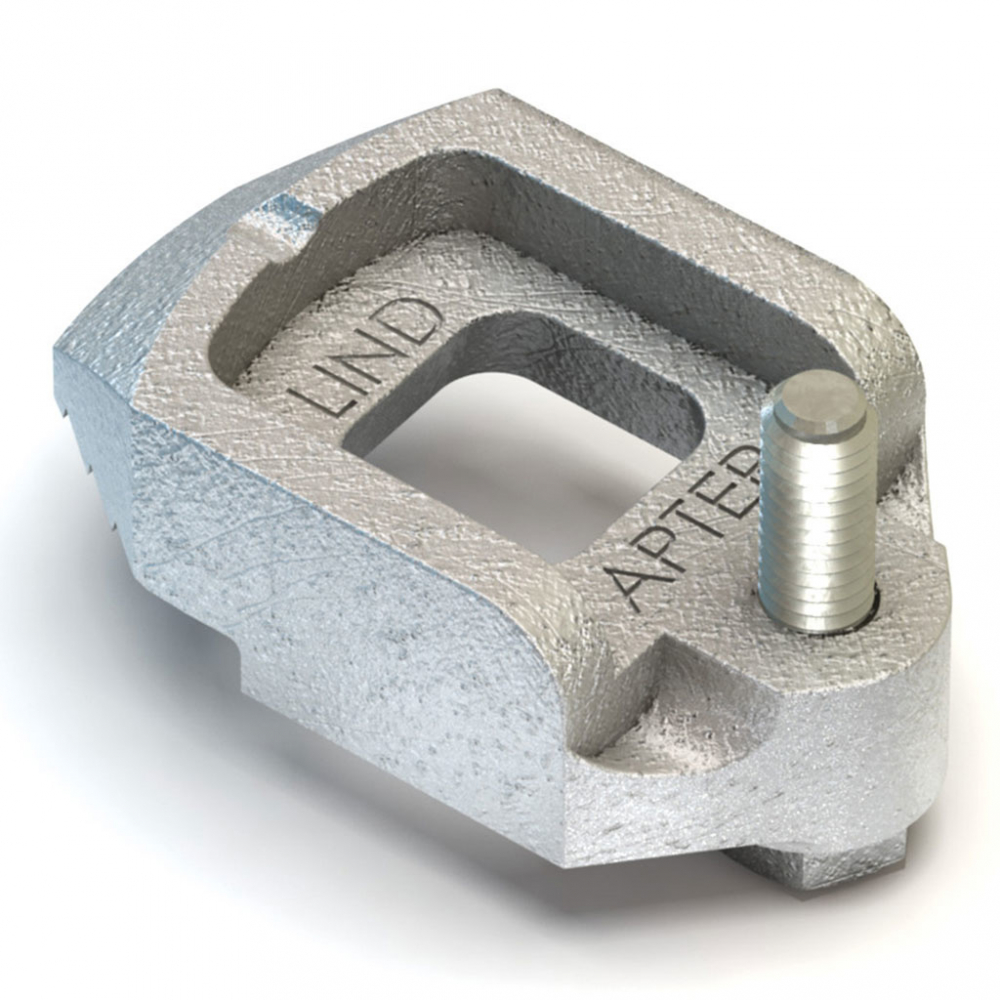

This clamp has an adjustable Setscrew Tail that can be adapted to fit a range of flange thicknesses.
• Suitable for parallel and tapered flanges up to 5°.
• Recessed top holds the bolt head captive while the nut is tightened. Type W washer can be used to fill the recess.
• The skirt prevents the clamp from rotating during installation.
• Suitable for parallel and tapered flanges up to 5°.
• Recessed top holds the bolt head captive while the nut is tightened. Type W washer can be used to fill the recess.
• The skirt prevents the clamp from rotating during installation.
| Size | M16 |
|---|---|
| Finish | Bright Zinc Plated |
| Pack Depth (mm) | 248 |
| Pack Height (mm) | 152 |
| Pack Width (mm) | 116 |
| Diameter | M16 |
| Brand | Lindapter |
| Pack Type | Box |
| Pack Qty | 1 |
There are no downloads for this product.
