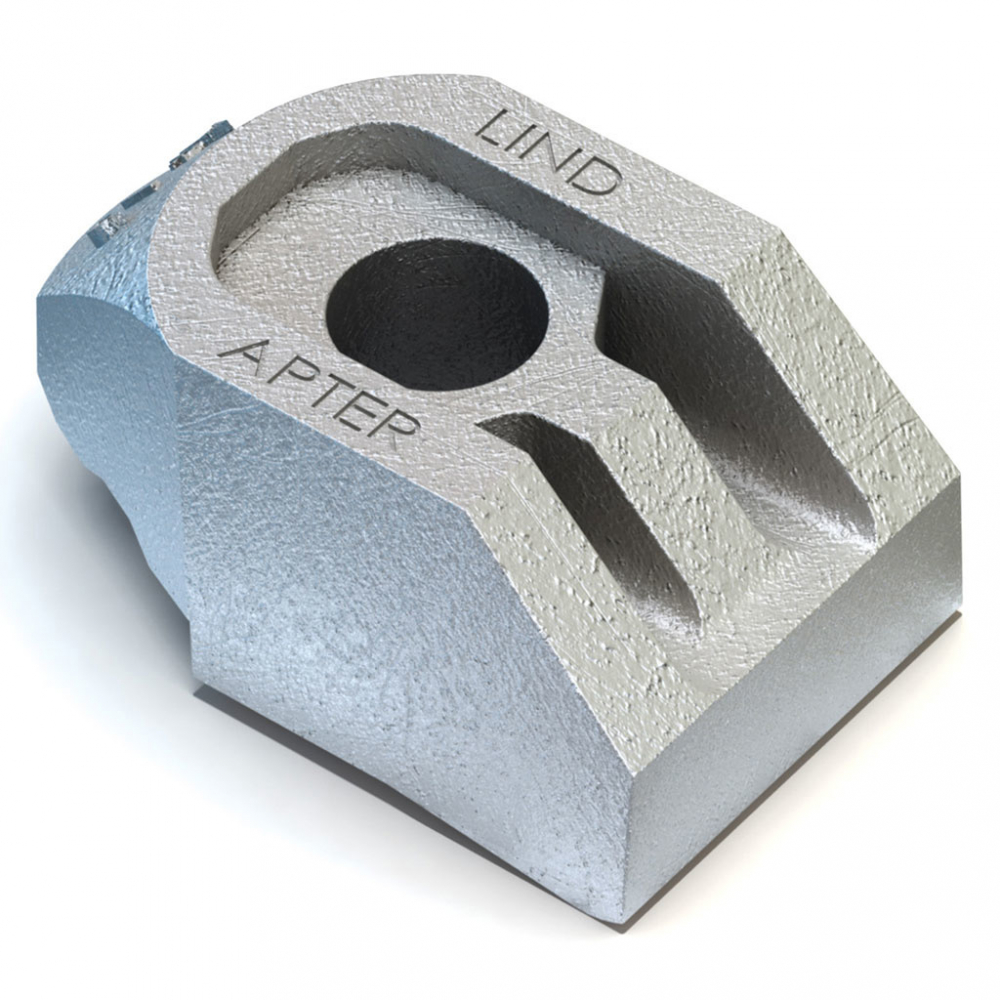

Lindapter HeavyDuty ClampS M20 Tail HDG AF20S Per 1

Stock Code: LM20AFS

Login...

Descriptions

A heavy duty clamp offering the highest load capacities of all Lindapter's High Slip Resistance clamps. Hot dip galvanised corrosion protection.

• High slip resistance for tensile, frictional and combined load applications.
• 70kN static slip resistance or 250kN tensile (AF24 with 4 x property class 10.9 fasteners).
• Recess holds the bolt head captive (property class 8.8).
• Suitable for parallel and tapered flanges up to 10°.
• The tail spans slotted clearance holes.

SizeM20
FinishHot Dip Galvanised
Pack Depth (mm)194
Pack Height (mm)272
Pack Width (mm)148
BrandLindapter
Pack TypeBox
Pack Qty1
DiameterM20
