Lindapter B Short Tail ZP M16 B16SW Per 1
Lindapter

Lindapter B Short Tail ZP M16 B16SW Per 1

Stock Code: LM16BS

Login...

Descriptions

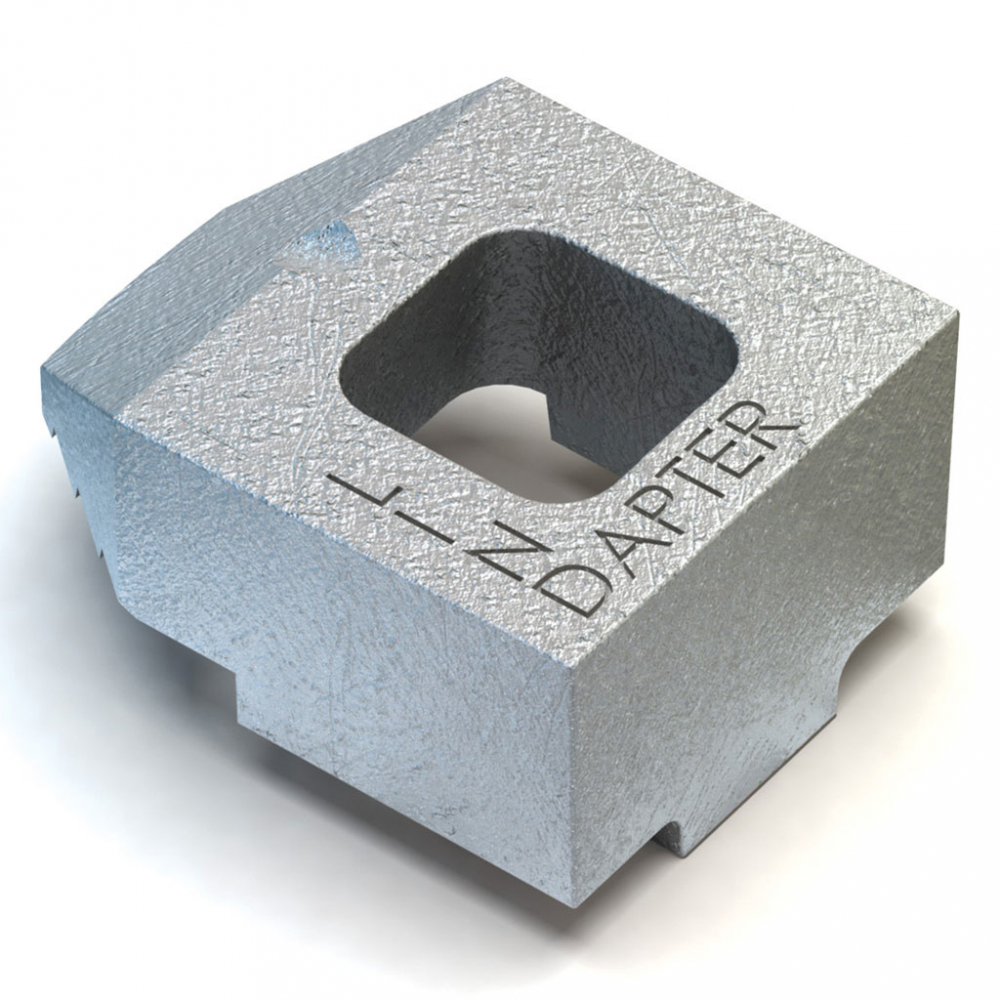

The flat-top version of Lindapter's standard clamp, for moderate tensile loading. Can also be used with Type A in a Girder Clamp configuration.

• Flat top allows the bolt head or nut to rotate on a hardened washer.
• Suitable for use with bolts, studs, tie rods, J-bolts.
• Supports up to 78.8kN in a tensile four-bolt configuration.
• For higher loads the Type AF should be used.

SizeM16
FinishBright Zinc Plated
Pack Depth (mm)250
Pack Height (mm)152
Pack Width (mm)116
BrandLindapter
Pack TypeBox
Pack Qty1
DiameterM16

There are no downloads for this product.
