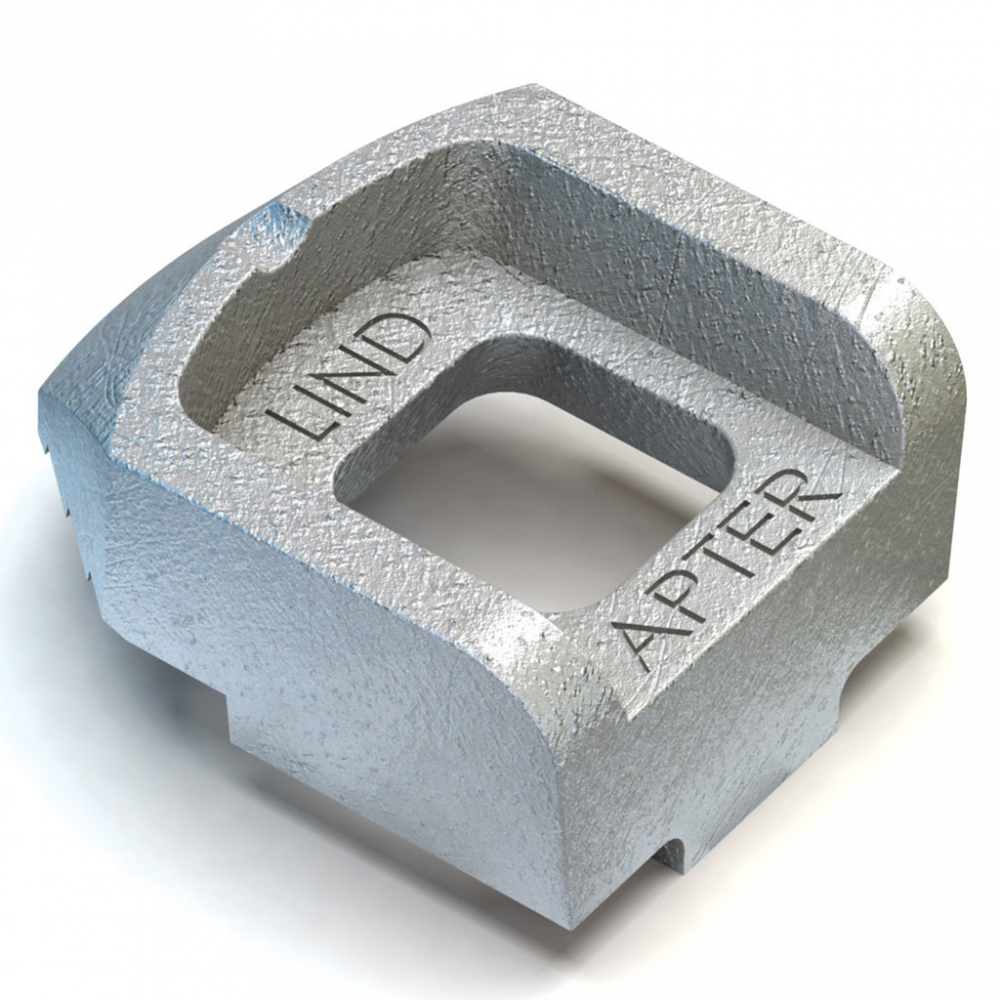

Lindapter A Short Tail ZP M16 A16SW Per 1
Lindapter

Lindapter A Short Tail ZP M16 A16SW Per 1

Stock Code: LM16AS

Login...

Descriptions

Lindapter's standard clamp is used to resist moderate tensile loading. Can also be used with Type B in a Girder Clamp configuration.

• Recessed top holds the bolt captive while the nut is tightened.
• Ideal for parallel flanges.
• Supports up to 78.8kN tensile in a four-bolt configuration.
• For higher loads the Type AF should be used.

SizeM16
FinishBright Zinc Plated
Pack Depth (mm)202
Pack Height (mm)152
Pack Width (mm)116
BrandLindapter
Pack TypeBox
Pack Qty1
DiameterM16

There are no downloads for this product.
