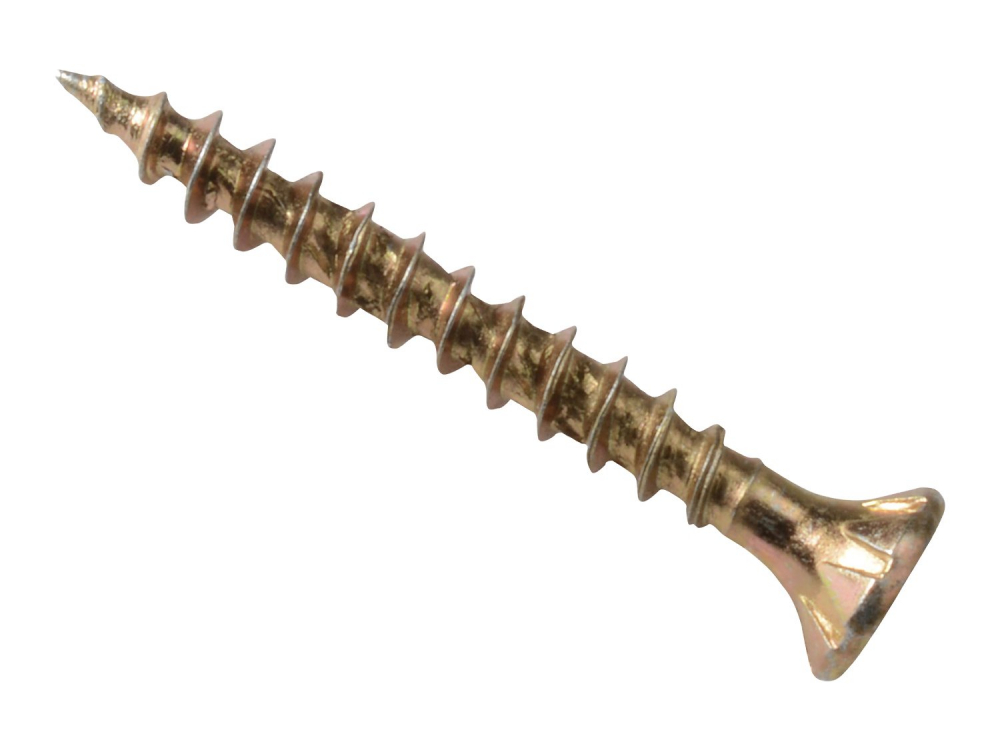

• Professional, elite performance multi-purpose woodscrews.
• Ideal for fixing into most wood applications.
• Elementech 400 surface coating provides corrosion resistance.
• Salt spray tested to 400 hours.
• A Non-Cr, Cr3+, yellow/zinc plated surface is environmentally friendly.
• A deep torx compatible head ensures reduced cam-out, higher torque levels and a firmer drive.

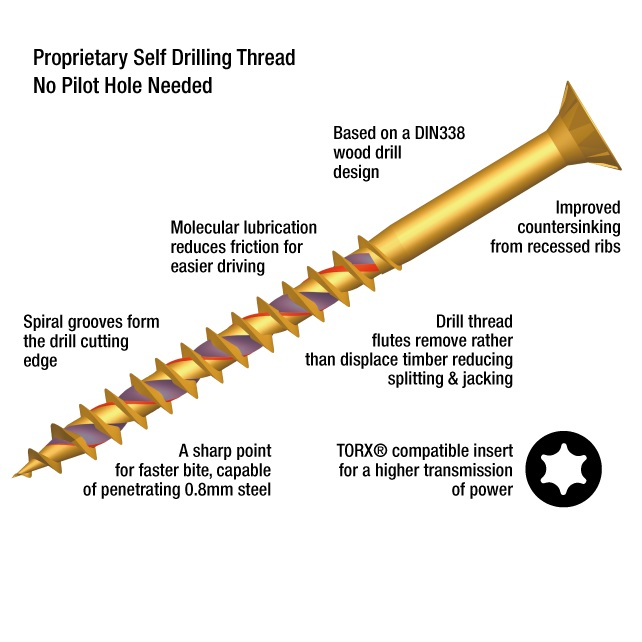

• Patented self-drilling thread - no pilot hole needed.
• Torx compatible insert for a higher transmission of power.
• Patented drill/drive shank for faster drive, reduced splitting and 'jacking' of the timber, increased pull-out and firmer fix.
• A sharp point for faster bite, capable of penetrating 0.8mm steel.
• Unique self drilling shank drives into most substrates -including hardwood - with ease.
• Hardened case and core give exceptional strength.
• Improved countersinking from recessed ribs.
• Impressive pull out value and less risk of working loose when used in substrates that flex in use.
• Flexes to 35º reducing likelihood of screw shearing when used in substrates that flex in use.
• CE approved for use in load-bearing timber construction.
• Free torx bit with every box.
| Size | 5.0 x 20mm |
|---|---|
| Finish | Zinc Yellow Passivated |
| Pack Depth (mm) | 85 |
| Pack Height (mm) | 40 |
| Pack Width (mm) | 70 |
| Pack Paper/Card Weight (gm) | 20.6 |
| Pack Plastic Weight (gm) | 0.6 |
| Insert Bit Size | T25 |
| Thread Length | Fully Threaded |
| Imperial Size | 3/4" x 10 |
| Metric Size | 5.0 x 20mm |
| Outer Depth (mm) | 190 |
| Outer Height (mm) | 90 |
| Outer Width (mm) | 230 |
| Diameter | 5.0mm |
| Brand | ForgeFast |
| Pack Type | Box |
| Length | 20mm |
| Barcode | 5028485144656 |
| Pack Qty | 200 |
| Drive Type | Torx TX |
| Head Type | Countersunk |
